Dekoratiivne LED-latern leegitseva säraga, taimeriga 6h/18h, toide: 3x 1.5V AAA (ei kuulu komplekti), IP20, antiikmust, Emos

Tootepuu > Paigaldustarvikud > Lülitid ^pistikupesad > Lülitid ^pistikupesad, süvis

Pilt on illustreeriv

PP Liht-veksellüliti Lexo2 10AX 250VAC IP20, valge

Kood: LK65012

Kliki siia ja küsi erihinda!

€ 1,60 /tk

Saadavus:

Laos

Kaal:

0.051 kg/tk

Hulgipakendi kogus:

10tk

SM Switch Lexo2 1-gang 2-way 10AX 250VAC IP20, white

Name: PP Liht-veksellüliti
Brand: Elit Llc partner
SKU: LK65012
Price: 1.60 EUR
Availability: InStock

Technical Data: 10AX 250VAC
Frequency: 50Hz
Colour: White
Main material: PC (Halogen free)
IP-Class: IP20
Max. Ambient temp.: 45°C
Fire hazard test: 650°C/850°C (IEC60695-2-1)
The product complies with the standard(s):
EN60669-1: 1999+A1:2002
The product is in conformity with the provisions of the following European directive(s):
LVD (2006/95/EC)
RoHS (2002/95/EC)
Certificate(s): CE, Semko
Technical Info:
Wiring diagram printed on the rear side.
Thermoplastic in the rocker and cover plate.
Screw terminal. Flush wiring.
Space enough for cable up to 2,5mm under the cover plate.
Base bottom plate act at the same time as a positioning guide by the door frame under installation.

Screw terminal:

Screw terminal

LK65012:

Lüliti

LK65015:

Lüliti

Code	Description	Package

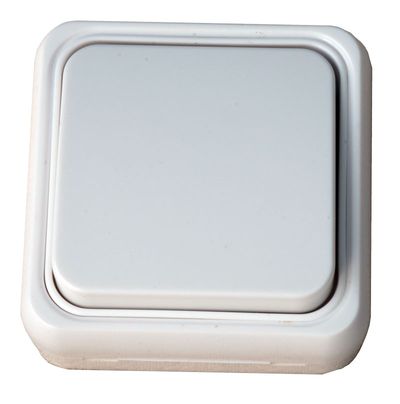

LK65012	SM Switch Lexo2 1-gang 2-way 10AX 250VAC IP20, white	10/200

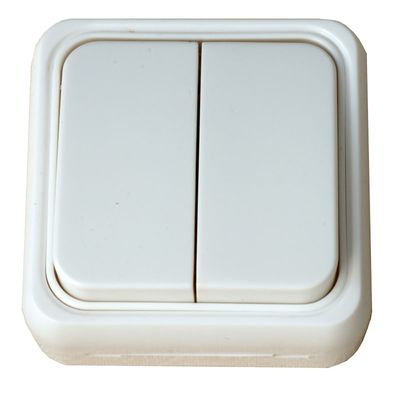

LK65015	SM Switch Lexo2 2-gang 1-way 10AX 250VAC IP20, white	10/200
