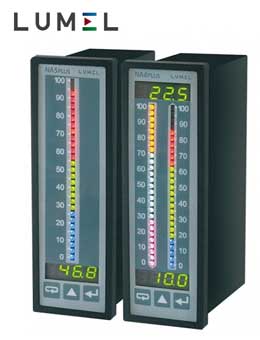

LUMEL - NA5PLUS, NA6PLUS: Programmable meters with bargraphs with multicolour bargraphs

Meters with bargraph are devices ensuring both a high measurement accuracy and very well visualization of the measuring process courses.
Very well visualization of the process is possible through using in meters 3 and 7-coloured bargraph built with diodes made in the gallium nitride technology.
They can find application in various industrial fields, e.g.food industry, pumping stations and savage-treatment plants, chemical industry, weather stations, brewing industry and many other fields where they are destined for visualisation of the measured value and evaluation of the monitored manufacturing process change trend.
They can also find application in automation systems where programmable controllers are applied.

For more information please send us enquiry:
Send enquiry now!

Features:

  • input: programmable
    • voltage: : 0…600V, 0…60mV, ±300mV
    • current: 0...200 mA, 0...5A,
    • thermocouple, resistance thermometers,
    • 0...4/10 kΩ
  • output: programmable
    • analog,
    • relay (up to 8 relays in meter NA6 type),
    • digital RS-485 with MODBUS protocol,
  • supply: 95...230...253 V a.c./d.c., 20...24...40 V a.c./d.c.

Kinds of executions:

  • NA5 PLUS – vertical, 1-measuring channel, with bargraph and display,
  • NA6 PLUS – vertical, 2-measuring channels, with 2 bargraphs and 2 displays.

Next to programmable measuring functions meters have many additional functions:

  • measurement of the input quantity and displaying it on the LED display and on the bargraph,
  • evaluation of the input signal into the indication on the base of the individual linear characteristic,
  • arithmetical: raising to a power, extraction of roots(additionally in NA6 type, operations in channels: summation, subtraction, multiplication, division),
  • programming of the bargraph colour and resolution,
  • signalling of the set alarm value exceeding,
  • recording of the measured signal in programmed time intervals,
  • memorisation of maximal and minimal values,
  • programming of the measurement averaging time,
  • programming of the indication resolution,
  • lockout of parameter introduction by means of a password,
  • servicing of the RS-485 interface in MODBUS protocol, both in ASCII and RTU mode,
  • galvanic isolation,
  • fixing in the panel

External dimensions:

  • 48 x 144 x 92mm

Download documentation:
NA6PLUS data sheet
NA5PLUS data sheet
